High Tech Customized Antenna PCB, PTFE PCB, Multi layer PCB

The core of our Multilayer PCB lies in its FR4 base material, a highly durable and thermally stable substrate that ensures excellent electrical insulation and mechanical support. This material choice guarantees consistent performance even under extre...
  • Parameter
  • Process flow
  • Video
  • Related products
  • Inquiry
Parameter

The core of our Multilayer PCB lies in its FR4 base material, a highly durable and thermally stable substrate that ensures excellent electrical insulation and mechanical support. This material choice guarantees consistent performance even under extreme conditions, making it suitable for a wide range of applications.

With a copper thickness ranging from 0.5 to 9OZ, our PCB offers excellent conductivity and current carrying capacity.

The precision of our PCB is further emphasized by its minimum hole size of 0.075mm, ensuring accurate component placement and connection. Additionally, the minimum line width and line spacing of 3Mil contribute to the PCB's intricate circuit design, maximizing its functionality while minimizing the risk of electrical interference.

To further enhance its durability and performance, our Multilayer PCB features a surface finishing treatment. This treatment not only improves the PCB's aesthetic appeal but also enhances its resistance to corrosion and wear, extending its lifespan and maintaining its performance over time.

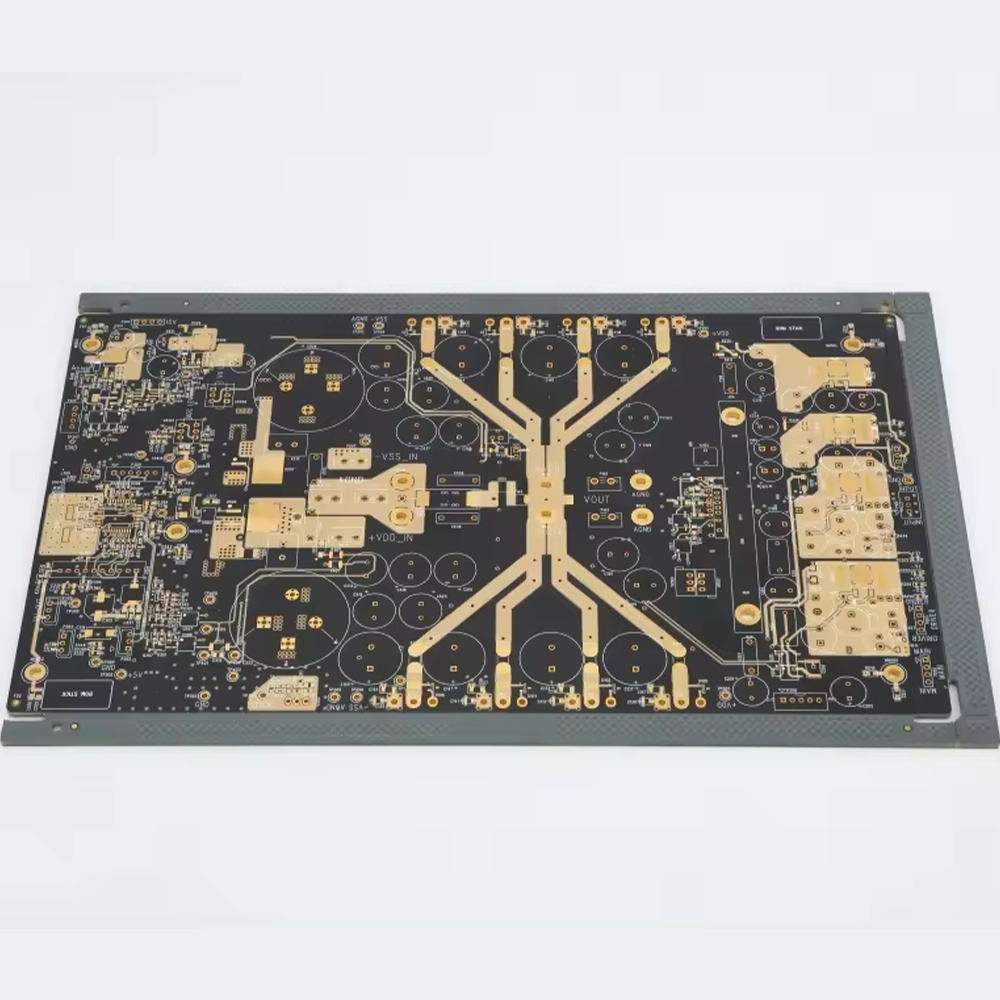

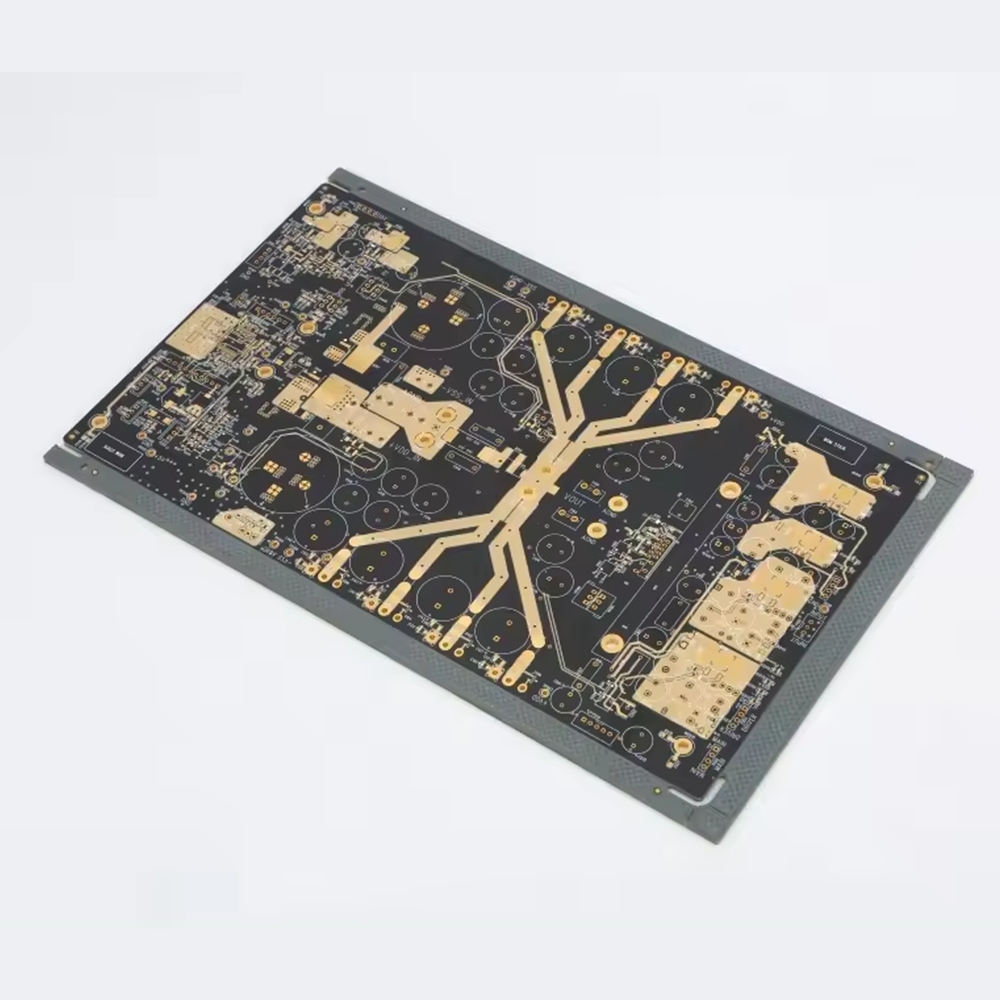

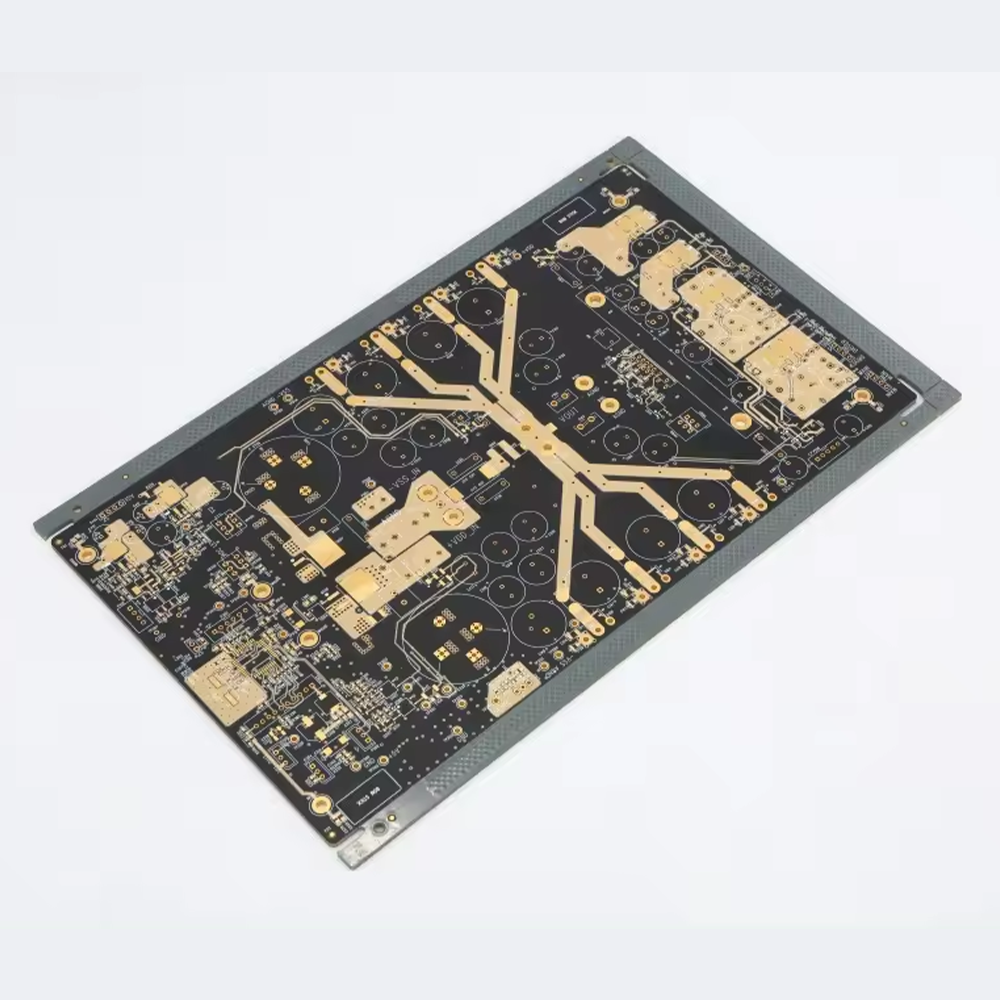

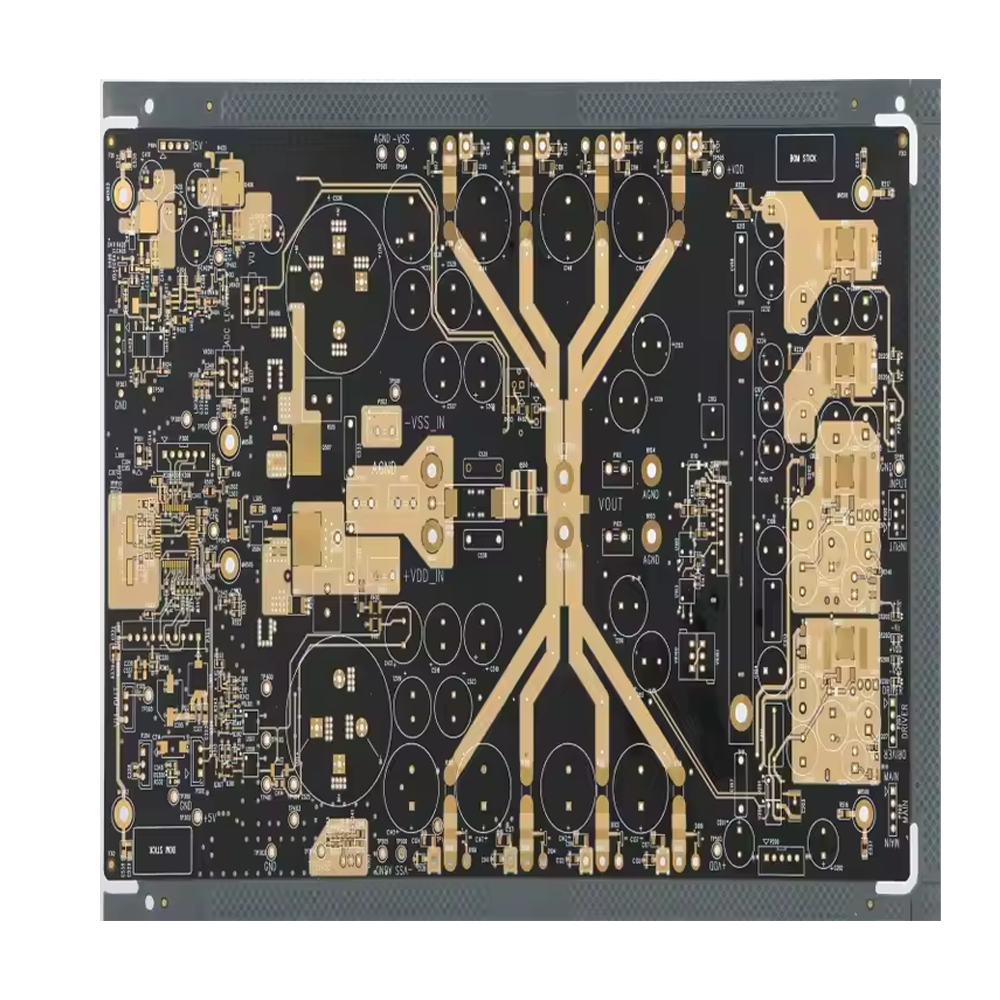

High Tech Customized Antenna PCB, PTFE PCB, Multi layer PCB details

High Tech Customized Antenna PCB, PTFE PCB, Multi layer PCB factory

High Tech Customized Antenna PCB, PTFE PCB, Multi layer PCB supplier

Process flow
high tech customized antenna pcb ptfe pcb multi layer pcb-0

1.Designing

high tech customized antenna pcb ptfe pcb multi layer pcb-1

2.Weaving

high tech customized antenna pcb ptfe pcb multi layer pcb-2

3.Dying & Printing
