New arrival Customized High quality Multilayer PCB assembly/PCB Manufacturer in China

Model Number SC-002, this Multilayer PCB originates from the electronics manufacturing hub of Guangdong, China. Known for its cutting-edge technology and manufacturing prowess, China ensures that this PCB is made with the utmost precision and quality...
  • Parameter
  • Process flow
  • Video
  • Related products
  • Inquiry
Parameter
Model Number SC-002, this Multilayer PCB originates from the electronics manufacturing hub of Guangdong, China. Known for its cutting-edge technology and manufacturing prowess, China ensures that this PCB is made with the utmost precision and quality.

The core of this PCB is composed of FR4 base material, a tried-and-tested material that offers exceptional mechanical and electrical properties. This ensures the PCB's stability and durability, making it suitable for long-term use in various environments.

In terms of conductivity, the Multilayer PCB boasts a copper thickness ranging from 0.5 to 9OZ, providing excellent conductivity and heat dissipation. This ensures efficient power transmission and prevents overheating, crucial for maintaining the integrity and performance of your electronic systems.

Precision is key in PCB manufacturing, and this Multilayer PCB excels in that aspect. With a minimum hole size of 0.1mm, minimum line width of 3mil, and minimum line spacing of 3mil, it offers remarkable detail and accuracy, ensuring seamless integration into your electronic circuits.

To further enhance its performance and durability, the surface of this PCB is finished with OSP (Organic Solderability Preservative). This coating protects the copper traces from oxidation and corrosion, ensuring reliable solderability and extending the PCB's lifespan.

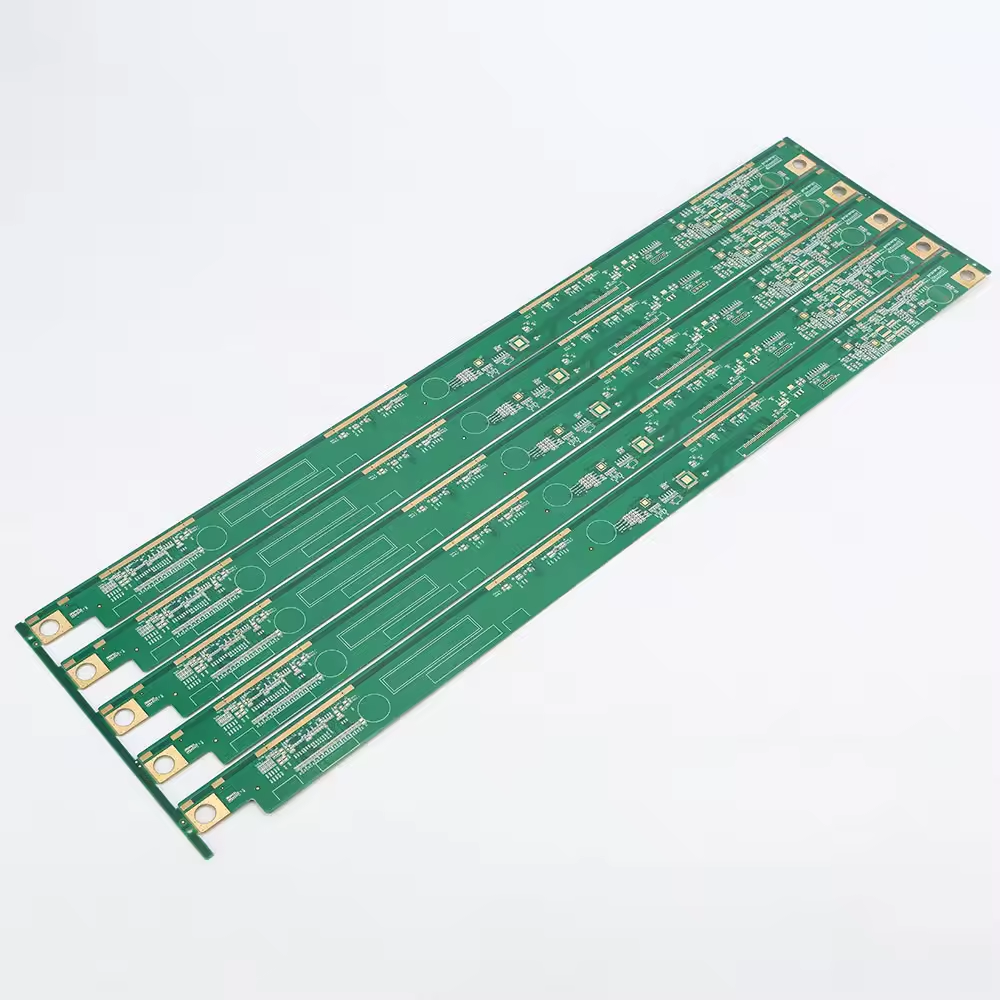

New arrival Customized High quality Multilayer PCB assembly/PCB Manufacturer in China factory

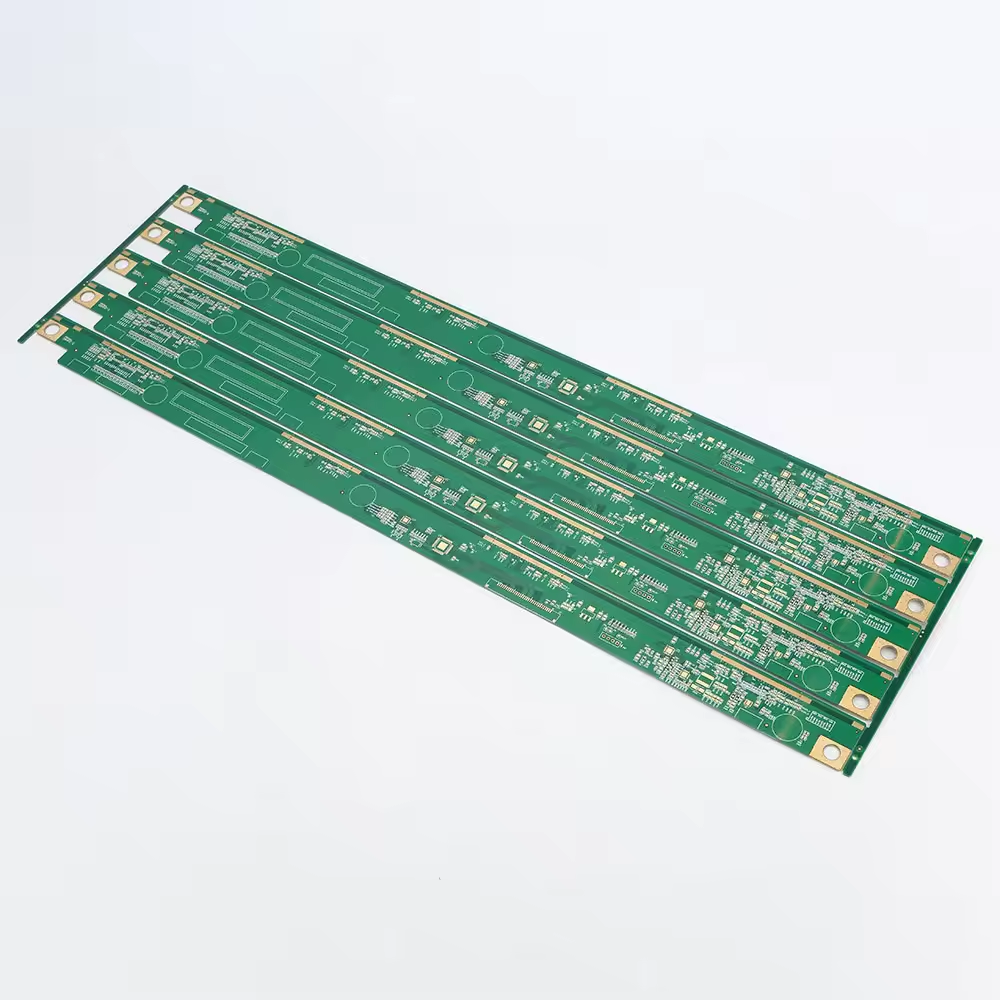

New arrival Customized High quality Multilayer PCB assembly/PCB Manufacturer in China factory

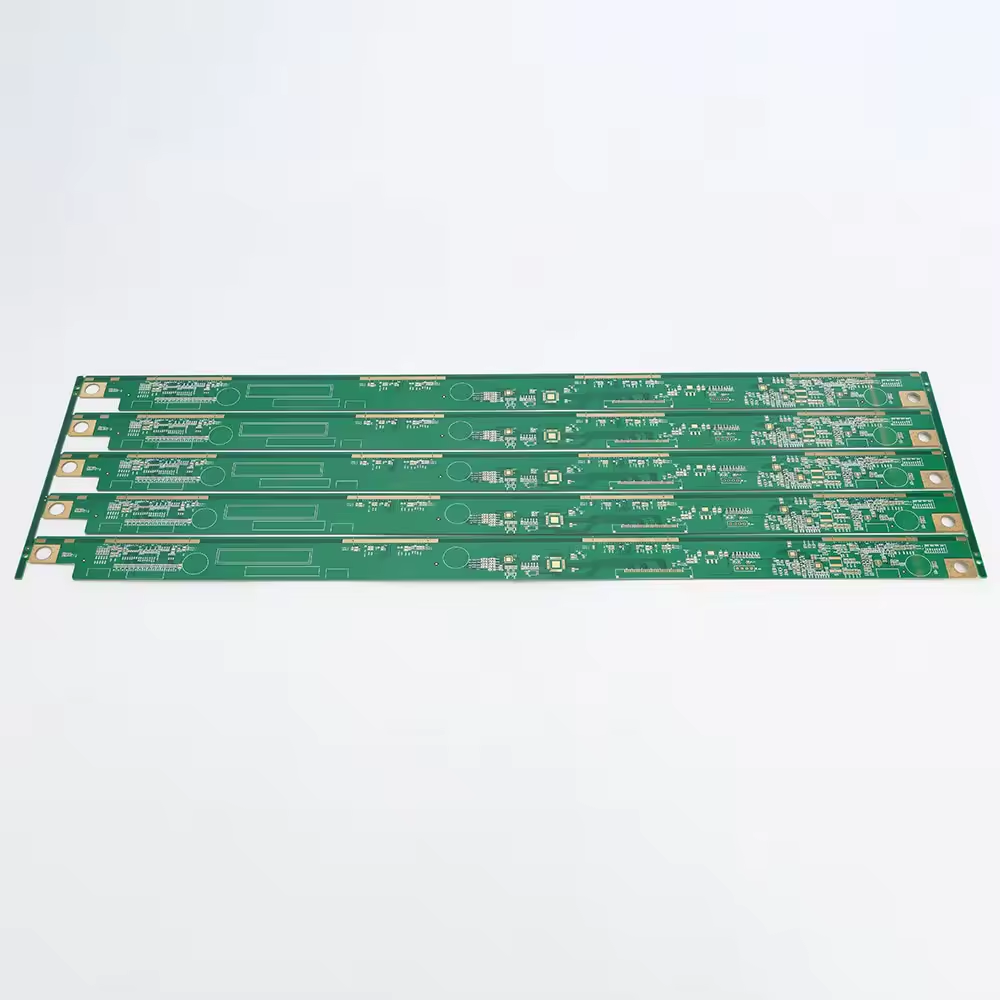

New arrival Customized High quality Multilayer PCB assembly/PCB Manufacturer in China details

Process flow
new arrival customized high quality multilayer pcb assemblypcb manufacturer in china-0

1.Designing

new arrival customized high quality multilayer pcb assemblypcb manufacturer in china-1

2.Weaving

new arrival customized high quality multilayer pcb assemblypcb manufacturer in china-2

3.Dying & Printing
