New arrival Customized Double sided PCB

The base material, FR4, ensures excellent electrical insulation and mechanical strength, while the copper thickness ranges from 0.5 to 9OZ, offering a wide choice to suit various applications.The PCB's precision manufacturing ensures a minimum hole s...
  • Parameter
  • Process flow
  • Video
  • Related products
  • Inquiry
Parameter

The base material, FR4, ensures excellent electrical insulation and mechanical strength, while the copper thickness ranges from 0.5 to 9OZ, offering a wide choice to suit various applications.

The PCB's precision manufacturing ensures a minimum hole size of 0.075mm, making it suitable for even the most intricate designs. Additionally, the minimum line width and spacing of 3Mil guarantee a clean and accurate circuit layout, enhancing the overall performance and reliability of the PCB.

To ensure optimal performance, the surface of the PCB is finished to a high standard, providing a smooth and even coating that protects the circuitry and enhances conductivity.

Whether you're working on a small-scale project or a large-scale production run, our Multilayer PCB is the perfect choice. Its versatility and reliability make it suitable for a wide range of electronic applications, including but not limited to consumer electronics, industrial equipment, and automotive systems.

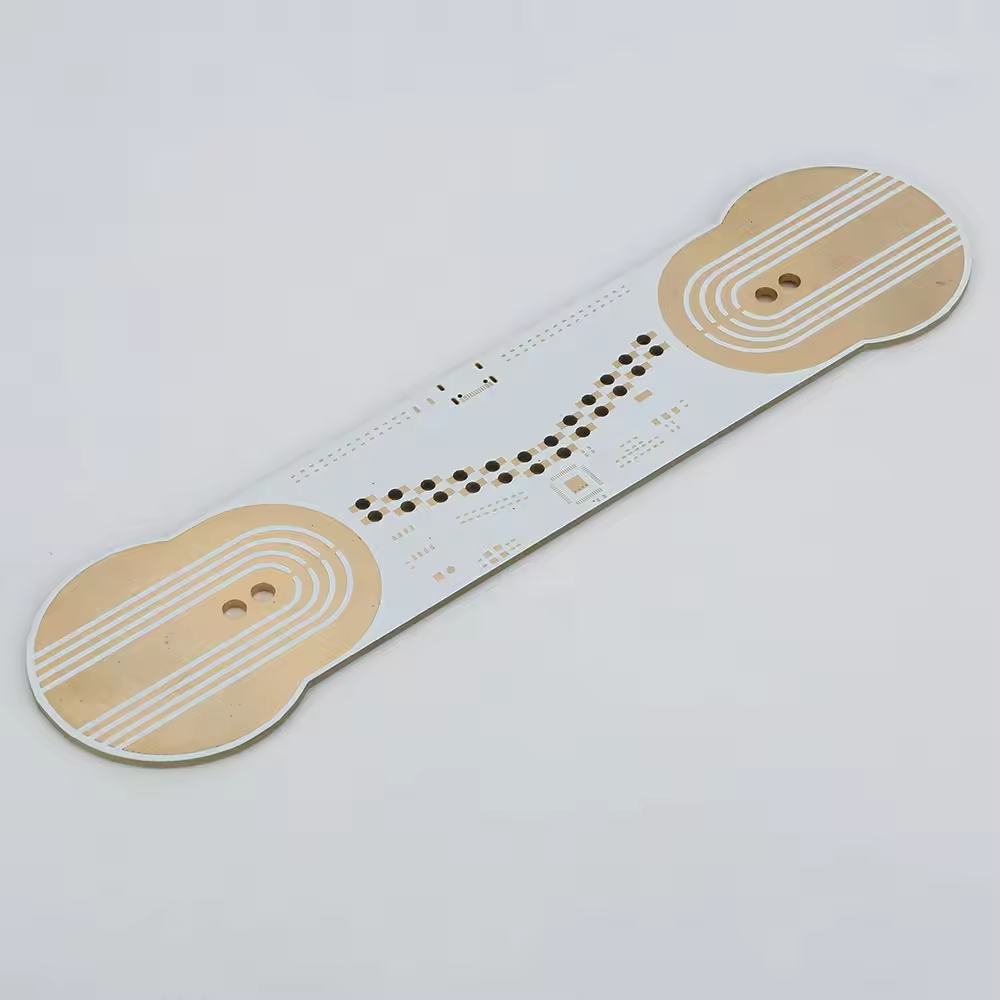

New arrival Customized Double sided PCB details

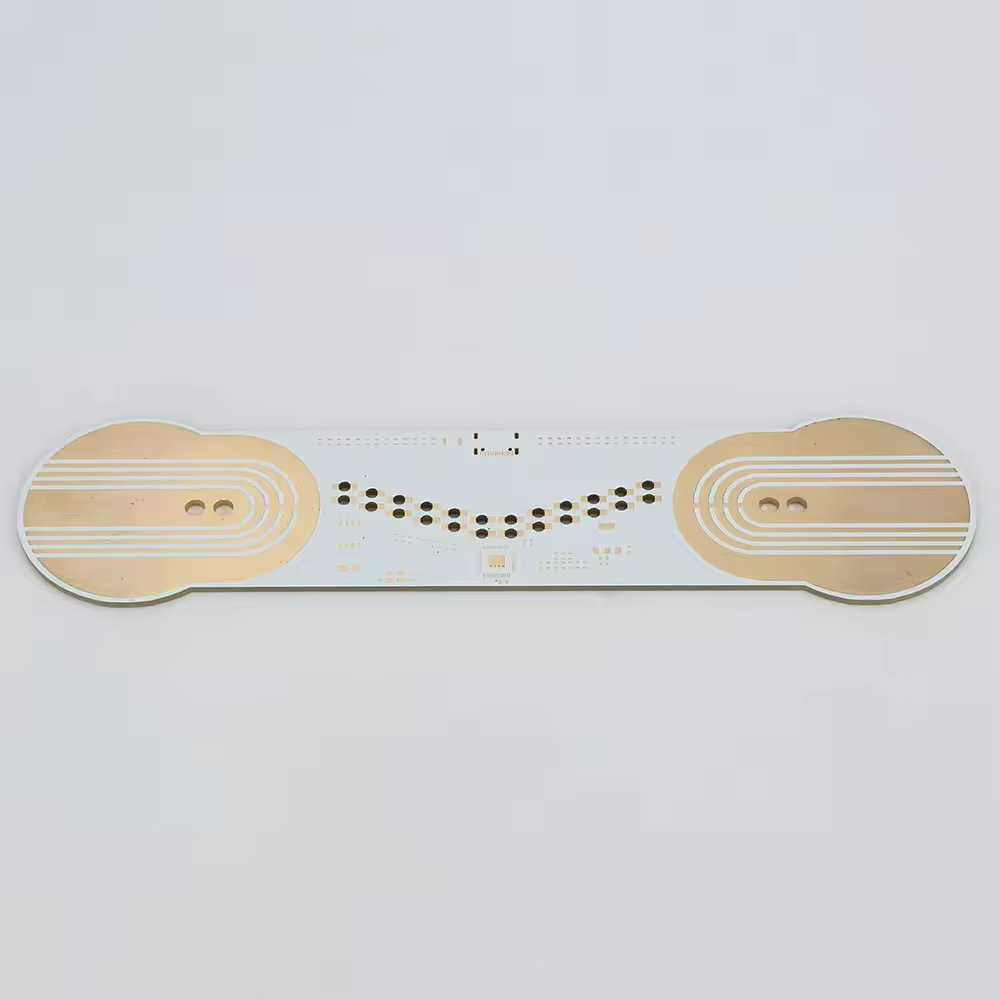

New arrival Customized Double sided PCB factory

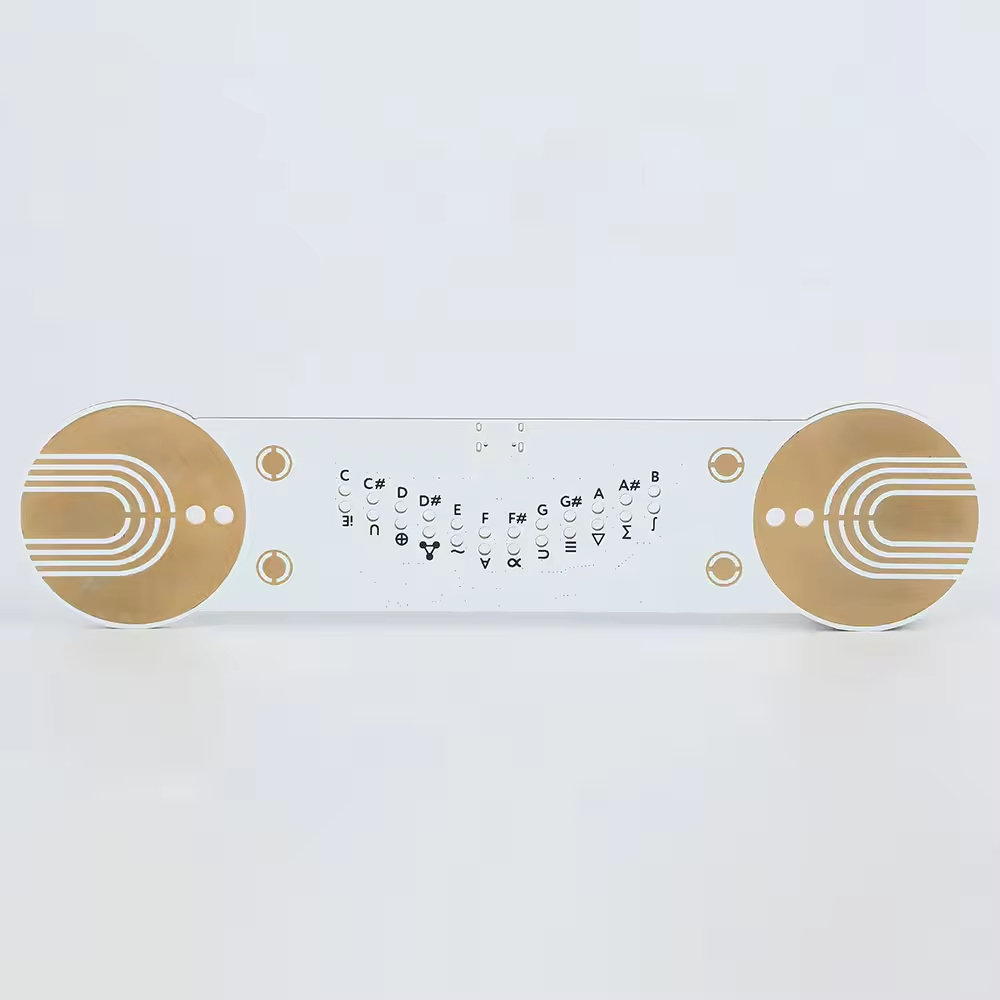

New arrival Customized Double sided PCB manufacture

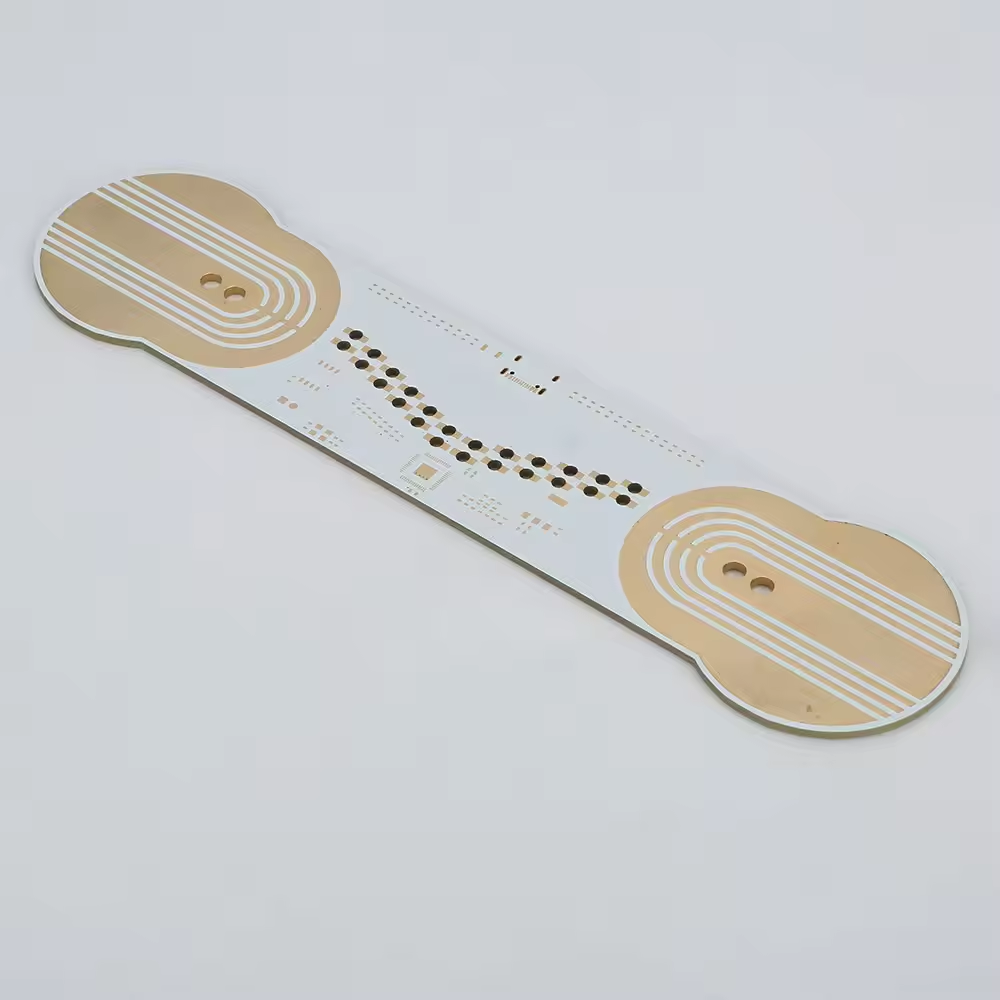

New arrival Customized Double sided PCB manufacture


Process flow
new arrival customized double sided pcb-0

1.Designing

new arrival customized double sided pcb-1

2.Weaving

new arrival customized double sided pcb-2

3.Dying & Printing
